Description
Simrig SR1 motion system
The SIMRIG SR1 has been sold to all corners of the world since 2018. All units are designed, built and tested by SIMRIG in Sweden.

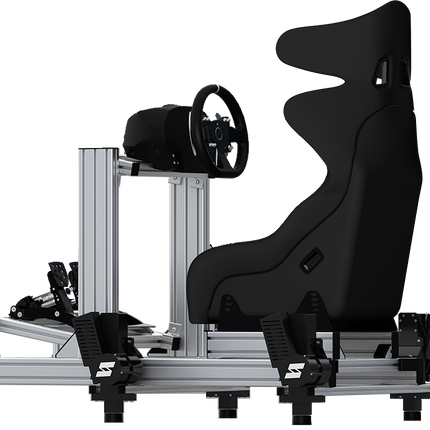

The SIMRIG SR1 is designed for maximum immersion and ease of use. With its small footprint, it can be mounted on your existing rig made of aluminum profiles. The electronic control unit is small enough to mount under your seat. It connects directly to your computer via USB. The power supply works with 100-240 V mains voltage.
For the best performance, durability and user experience, the maximum load is set at 175 kg. The maximum load includes the rig, the driver, other peripherals and additional weight moved by the SIMRIG SR1 motion system.
The system has three degrees of freedom (3-DOF): pitch, roll and heave. With pitch and roll, the system can simulate acceleration, braking and cornering. It can also follow the track geometry, for example by leaning forward when driving downhill. With Heave, the system can push the rig upwards when you hit kerbs and bumps in the road.
The SIMRIG SR1 is accompanied by SIMRIG Control Center. This software controls the motion system by interpreting the position and acceleration of the simulated vehicle. It supports all major simulation titles.

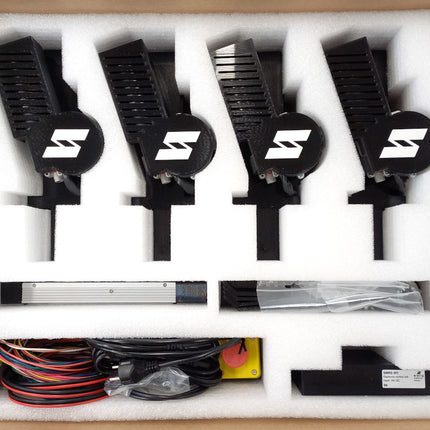

A complete motion system:

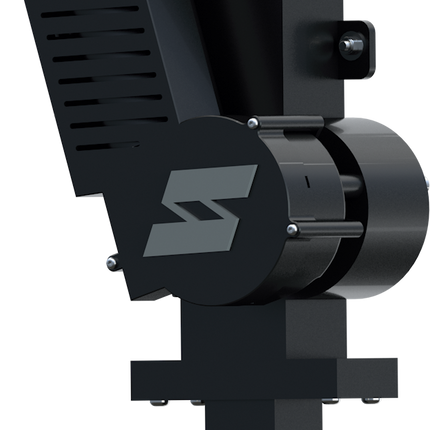

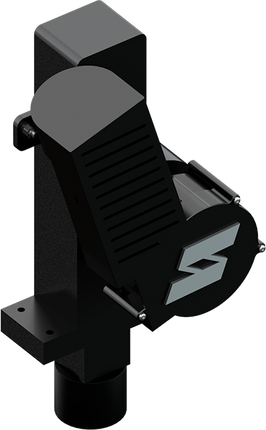

- 4x SIMRIG SR1 linear actuator
- 1x SIMRIG SR1 ECU
- 1x 500W power supply (100-240 V at 50-60 Hz)
- 1x emergency stop switch
- 4x cable for linear drive (1m)
- 1x power cable for ECU (2m)
- 1x power cable (C13)
- 1x USB cable (3m)
- 1x SIMRIG Control Center (download)
- Various screws and T-slots
And mounting brackets for your selected rig:
- 4x SIMRIG SR1 bracket
- 4x aluminum profile 780x20x20 mm
- 4x aluminum angle brackets
- 4x profile cover
- Various screws and T-slots
Your price (within the EU with VAT, third countries/export without VAT)
