Simgrade Thera characteristics: Set consists of gas & brake Billet aluminum with black anodized surface Load cell signal measurement in all pedals (brake: 200 kg) Brake pedal max. force from the foot: 110 kg Progressive brake pedal feel due to the use of a specially manufactured thick-walled elastomer Ball bearings and spherical rod ends in all pivot points: Extremely smooth pedal feel Silent operation No maintenance or lubrication required Zero lateral play and extremely stiff Super fast and easy adjustment of the pedal feel without tools Cable length per pedal 35 cm: free positioning from pedal to pedal for optimal ergonomics Calibration software with: adjustable dead zones non-linear response curves Function to save to file and load from file Compact design: 24mm across x 80mm lengthwise. Can be mounted directly to Aluminum profile (40x80 or higher). Mounting with M6 (included) or M5 screws. Pedal can be tilted by +/- 8.5 degrees 5 years warranty (2 years commercial) Designed, manufactured and assembled 100% in Finland Video Review by Dan SuzukiSimGrade Thera Review | A super smooth and high quality pedal set - YouTube

Read more less

Stable adjustable heel stop Steel with 3 mm thickness Matt black surface Dimensions: see product picture Fastening with M6 (or smaller) screws. M6 screws included. Compatible with pedal base plate

Read more less

Ideal for Thera pedals, can also be used with other pedals Includes mounting screws M5 and T-nuts M5 for mounting on the aluminum profile Can also be mounted on any flat surface Black powder finish of the surface Width 386 mm

Read more less

Stable base plate for pedals Out of the box compatible with Thera and R7 pedals Can also be used as a universal base plate Compatible with heel stop Dimensions: see product picture Aluminum with 8mm thickness Matt black surface (fine textured powder coating) Width 386 mm | Length 286 mm Distance of mounting holes (lateral) 362 mm Recommended mounting screws: M8 or M6 (M8 included)

Read more less

CHARACTERISTICS: Rugged stainless steel construction Virtually double pedal control and feed accuracy due to double action pedal arm design Heel can move up/down with the foot, resulting in excellent pedal control and advance accuracy Fully adjustable pedal surfaces and heel supports for optimal pedal feel and ergonomics Load cell in all pedals for throttle, brake and clutch Brake: 200 kg load cell / maximum load through the foot: 100 kg Silent operation due to the use of ball bearings and spherical rod ends Maintenance free: no lubrication required Installation pattern (click to open): 87 mm (lateral) x 80 mm (longitudinal) ⇒ Can be mounted directly on aluminum profiles (minimum 40×120 mm) Adjustable pedal tilt angle +8 / -16 degrees. Super easy and quick adjustment of pedal travel, pedal feel and required actuation force Adjustable max. compression for each polyurethane spring in 1 mm increments Adjustable brake travel limiter (does not limit load, only travel) 12 bit resolution Calibration software with adjustable dead zones Non-linear response curves Save to file and load from file for profiles Pedal-to-controller box cable lengths: Brake 35 cm, Throttle 25 cm Double shielded USB cable Controller box equipped with mounting holes (M4) Can be mounted directly to an industry standard 80/20 aluminum profile (min. 40×120 mm or 2 separate profiles) Designed, manufactured and assembled in Finland Warranty: 2 years INCLUDING: Controller box + USB cable Polyurethane elastomers: 4 x L=15 mm (installed) | 5 x L=10 mm 1 x steel spring L=51 mm Grounding cable (use only if necessary) Grip strap for brake pedal 4x M6 T-nut (for fastening to aluminum profile) for each pedal + 4x M6-16 screws + washers 2x M4 T-nut for controller box + M4-25 screws Additional washers Clutch is supplied with an optional spring

Read more less

CHARACTERISTICS: Rugged stainless steel construction Virtually double pedal control and feed accuracy due to double action pedal arm design The heel can move up/down with the foot, resulting in excellent pedal control and advance accuracy Fully adjustable pedal surfaces and heel supports for optimal pedal feel and ergonomics Load cell in all pedals for throttle, brake and clutch Brake: 200 kg load cell / maximum load through the foot: 100 kg Silent operation due to the use of ball bearings and spherical rod ends Maintenance free: no lubrication required Installation pattern (click to open): 87 mm (lateral) x 80 mm (longitudinal) ⇒ Can be mounted directly on aluminum profiles (minimum 40×120 mm) Adjustable pedal tilt angle +8 / -16 degrees. Super easy and quick adjustment of pedal travel, pedal feel and required actuation force Adjustable max. compression for each polyurethane spring in 1 mm increments Adjustable brake travel limiter (does not limit load, only travel) 12 bit resolution Calibration software with adjustable dead zones Non-linear response curves Save to file and load from file for profiles Pedal-to-controller box cable lengths: Brake 35 cm, Throttle 25 cm Double shielded USB cable Controller box equipped with mounting holes (M4) Can be mounted directly to an industry standard 80/20 aluminum profile (min. 40×120 mm or 2 separate profiles) Designed, manufactured and assembled in Finland 🇫🇮. Warranty: 2 years   INCLUDING: Controller box + USB cable Polyurethane elastomers: 4 x L=15 mm (installed) | 5 x L=10 mm 1 x steel spring L=51 mm Grounding cable (use only if necessary) Grip strap for brake pedal 4x M6 T-nut (for fastening to aluminum profile) for each pedal + 4x M6-16 screws + washers 2x M4 T-nut for controller box + M4-25 screws Additional washers

Read more less

CHARACTERISTICS: Rugged stainless steel construction Convenient dual pedal control and feed accuracy due to double acting pedal arm design Clutch comes with an optional spring Heel can move up/down with foot, resulting in excellent pedal control and feed accuracy Fully adjustable pedal surfaces and heel supports for optimal pedal feel and ergonomics Load cell in all pedals for throttle, brake and clutch Silent operation due to the use of ball bearings and spherical rod ends Maintenance-free: no lubrication required Installation pattern (click to open): 87 mm (lateral) x 80 mm (longitudinal) ⇒ Can be mounted directly on aluminum profiles (minimum 40×120 mm) Adjustable pedal tilt angle +8 / -16 degrees. Super easy and quick adjustment of pedal travel, pedal feel and required actuation force Adjustable max. compression for each polyurethane spring in 1 mm steps 12 bit resolution Calibration software with adjustable dead zones Nonlinear response curves Save to file and load from file for profiles Double shielded USB cable Can be mounted directly to an industry standard 80/20 aluminum profile (min. 40×120 mm or 2 separate profiles) Designed, manufactured and assembled in Finland 🇫🇮. Warranty: 2 years

Read more less

Billet aluminum, black anodized Stainless steel ball bearings in all major pivot points Ultra-smooth running due to the use of ball bearings No lateral play No lubrication required Silent operation due to design No metal-to-metal contact at end stops Mounting: 4 x M6 screws 5 years warranty Designed, manufactured and assembled in Finland

Read more less

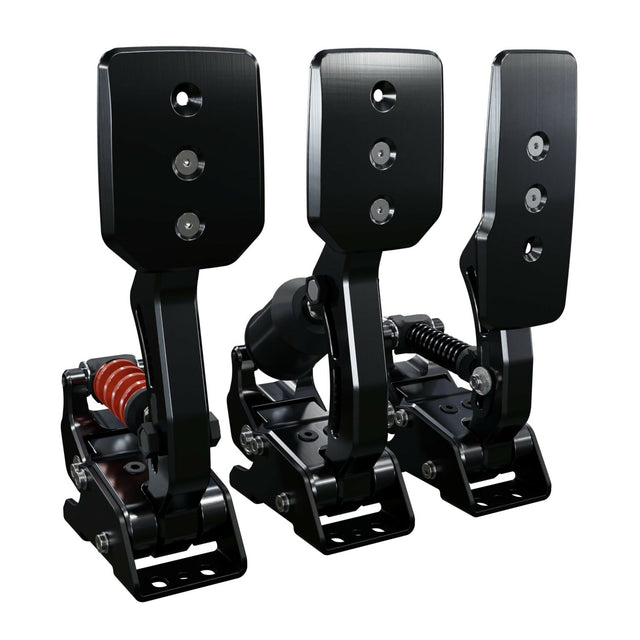

 CHARACTERISTICS: Set consists of gas, brake & clutch Billet aluminum with black anodized finish Load cell signal measurement in all pedals (brake: 200 kg) Brake pedal max force from foot: 110 kg Special elastomer in the brake pedal ensures extremely progressive feel and long service life Ball bearings and spherical rod ends in all pivot points: Extremely smooth pedal feeling Silent operation No maintenance or lubrication needed Zero lateral play and extremely rigid Super fast and easy adjustment of the pedal feel without tools Cable length per pedal 35 cm: free positioning from pedal to pedal for optimal ergonomics Calibration software with: adjustable dead zones non-linear response curves Function to save to file and load from file Compact design: 24mm across x 80mm lengthwise. Can be mounted directly to Aluminum profile (40x80 or higher). Mounting with M6 (included) or M5 screws. Pedal can be tilted +/- 8.5 degrees 5 years warranty (2 years commercial) Designed, manufactured and assembled 100% in Finland Video Review by Dan SuzukiSimGrade Thera Review | A super smooth and high quality pedal set - YouTube
